RFID
1. RFID (Made in Germany)
■ RFID Basics
Frequency Range | Typical Applications | Qualities | |
LF 30~500 kHz | TROVAN: 125 kHz TIRIS: 134.2 kHz | -Access control -Animal identification -Immobilisers -Tool recognition -Waste management | -Short range < 50 cm -Good qualities with liquids or metal -Low data transfer rates -Robust, expensive transponders -Small encryption possible -No anticollision |
HF 3~30 MHz | ISO 14443: 12.56 MHz ISO 15693: 13.56 MHz ISO 18000-3 NFC | -Library management -Document management -Ticketing -Trade -Logistics applications | -Range < 150 cm -Good qualities in difficult environ-ments(liquids, textiles) -Difficulties with metal environment -Small, flat transponder types possible -Encryption possible -Anti-collision for 10-40 tags per second |
UHF 850~950 MHz | EPC CLASS 1: 868 MHz EU EPC Class 2: 915 MHz Us | -Logistics -Waste management -Storage management -KANBAN systems | -High Range < 10 m -Good qualities in difficult environ-ments -Reflections at long range -High data transfer rates -Cheap transponder -Anti-collision for more than 50 tags per second |
■ LF Product Line
| |
|
|

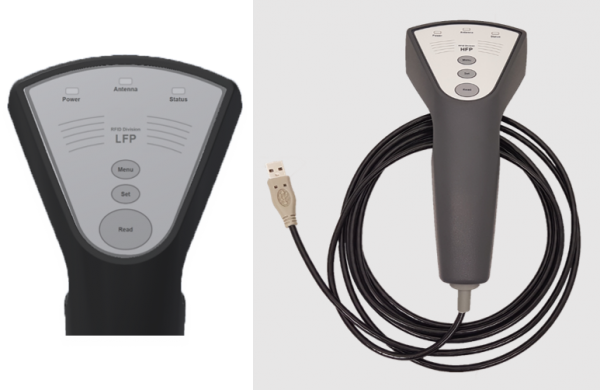

LF Antennas & Components | LFM LP (Load Port) Reader | LFM4x Reader | LFP Handheld Reader |
-Block & ESign antennas for short ranges -Frame antennas for medium & long ranges | -Transponder identification according to ISO 18000 (134.2kHz) -Ethernet & RS232 interface -1 antenna connector -Automatic antenna tuning -Various configurations | -Transponder identification according to ISO 18000 (134.2kHz) -Ethernet & RS232 interface -4 antenna connectors -4 DIP switches & 3 status LEDs -I/O modules with inputs & outputs available | -Transponder identification according to ISO 18000 (134.2kHz) -USB variable cable length -Integrated antenna -Membrane keypad & status LEDs -Keyboard emulation or RS232 interface |
■ HF Product Line
| | |
|
HF Antennas & Components | HFM6x Reader | HFS Display-Reader | HFS ESign-Reader |
-Block & ESign antennas for short ranges -Frame antennas for medium & long ranges | -Transponder identification according to ISO15693 (13.56 MHz) -Ethernet and RS232 interface -6 antenna connectors -4 DIP switches & 3 status LEDs -I/O modules with inputs & outputs available | -Transponder identification according to ISO 15693 (13.56 MHz) -Ethernet interface, PoE -Integrated antenna -6 status LEDs -Touch display -Customizable user interface | -Transponder identification according to ISO 15693 (13.56MHz) -USB / RS232 interface -Integrated antenna -3 user LEDs, 1 RGB LED -Variable cable lengths available |
■ UHF Product Line
|
|
UHF Display-Reader | UFS Compact-Reader |
-Transponder identification according to ISO18000-6C (868-920 GHz) -Ethernet interface, PoE -Integrated antenna -6 status LEDs -Touch display -Customizable user interface | -Transponder identification according to ISO 18000-6C (868-920 GHz) -Ethernet interface, PoE (power over Ethernet) -Integrated antenna, up to 2 external antennas -4 status LEDs, integrated buzzer -Sensor inputs (PNP, 12V, 150mA) |
2. Brooks Automation RFID (Made in USA)
• Time saving (quick reading)
• Less affected by the environment (dust, oil, etc.)
• Simultaneous identification (fast reading in a large volume)
• Minimization of wear and tear = long life = low maintenance cost
• Large memory capacity
• Reading rate close to 100%
• Read and write available=Single tech from production to shelf
| LF-RFID Technology | HF-RFID Technology |
Frequency | 134.2 kHz | 13.56 MHz |
Data Storage | Up to 1088 bit | Up to 2048 Bit |
Reading Time | Medium (~90ms) | Fast (8ms) |
Typical Writing Time | 300 ms | 20 ms |
Programming Cycles | 100,000 | 100,000 |
Standard | TIRIS (ISO 18000) | ISO/IEC 15693 |
Simultanceous ID of tag | No | Yes |
Data Locking Option | Yes | Yes |
Secure Memory Area | No | Yes(Mifare, My-D) |
Tag format | Glass, Wedge, Card, Cylinder, Disk | Inlay (different dimensions), Dist |
LF 80 Series | LF 60 Series | Antennas |
|
|
|
HF 70 Series | HF 70 Series | Accessories |
|
|
|
